Sales Stainless Steel Assortment

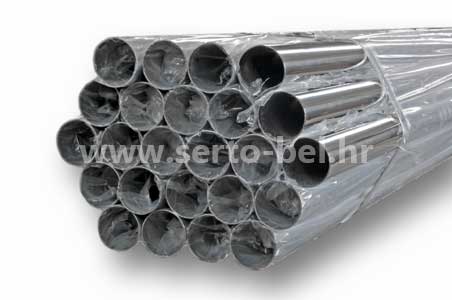

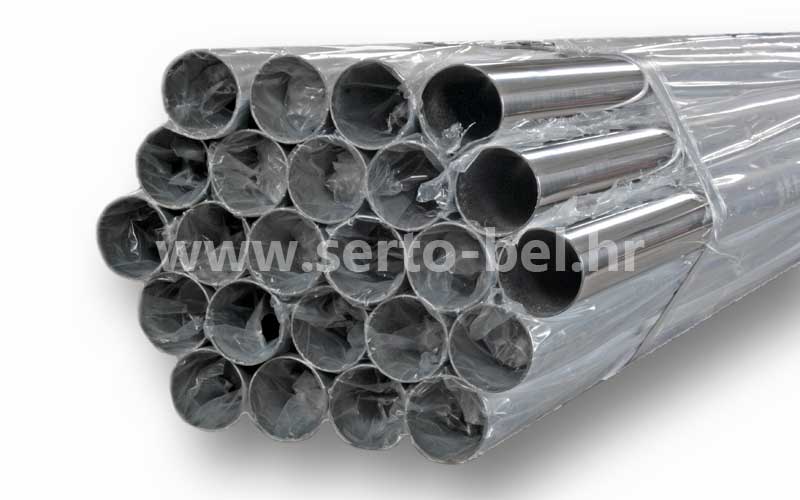

Stainless steel (inox) welded round tubes for food industry
We offer stainless steel welded round tubes for food industry according to EN 10357 (DIN 11850) and SMS in the following qualities:
AISI 304 - AISI 316L
With respect to the quality of surface of stainless steel welded food industry tubes, we offer as follows:
- brushed tubes
- polished tubes
- mirror polished tubes
- mirror polished outside/polished inside
Stainless steel welded tubes are welded in TIG procedure.
Standard lengths of stainless steel tubes are 6,0 m.
Certificates according to EN 10204/3.1, upon request PED and AD-W
Stainless steel welded tubes according to DIN 11850
| DN | OUTSIDE DIAMETER mm | THICKNESS mm | WEIGHT kg/m |
|---|---|---|---|
| 25 | 28 28 | 1 1,5 | 0,692 1,018 |
| 32 | 34 34 | 1 1,5 | 0,854 1,237 |
| 40 | 40 40 | 1 1,5 | 0,999 1,479 |
| 50 | 52 52 | 1 1,5 | 1,300 1,941 |
| 65 | 70 70 | 1,5 2 | 2,643 3,489 |
| 80 | 85 | 2 | 4,157 |
| 100 | 104 104 | 1,5 2 | 3,360 4,500 |
Stainless steel welded tubes according to SMS
| DN | OUTSIDE DIAMETER mm | THICKNESS mm | WEIGHT kg/m |
|---|---|---|---|
| 1" | 25,4 25,4 | 1 1,5 | 0,625 0,918 |
| 11/2" | 38,1 38,1 | 1,25 1,5 | 1,130 1,406 |
| 2" | 50,8 50,8 | 1,2 1,5 | 1,540 1,910 |
| 21/2" | 63,5 | 1,5 | 2,380 |
| 3" | 76,1 76,1 | 1,5 2 | 2,870 3,800 |
| 4" | 101,6 101,6 | 1,5 2 | 3,847 5,104 |
