Sales Stainless Steel Assortment

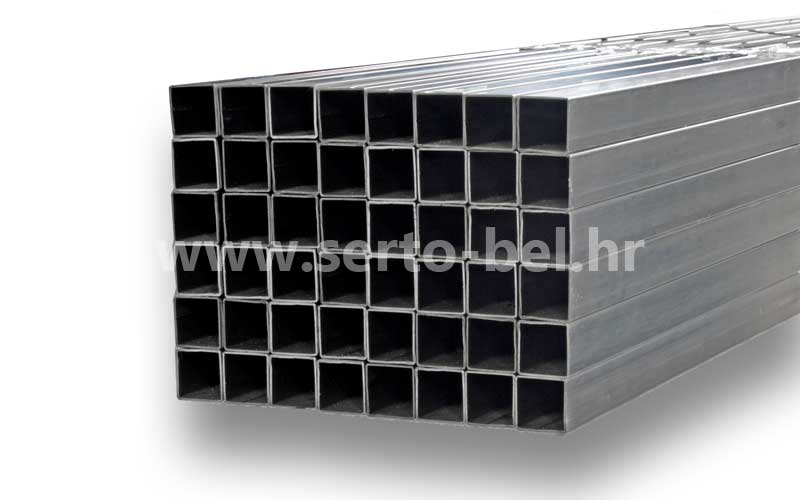

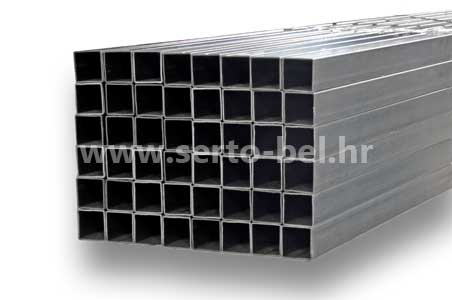

Stainless steel (inox) welded square tubes
We offer stainless steel welded square tubes according to EN 10219-2 in the following qualities:
AISI 304 - AISI 316L
With respect to the quality of surface of stainless steel welded square tubes, we offer as follows:
- brushed tubes
- polished tubes
- mirror polished tubes
Stainless steel welded square tubes are welded in HF (high frequency) procedure.
Standard lengths of stainless steel tubes are 6,0 m.
Certificates according to EN 10204/3.1
| DIMENSIONS mm | WEIGHT kg/m |
|---|---|
| 10 × 10 × 1,0 | 0,298 |
| 15 × 15 × 1,0 | 0,462 |
| 15 × 15 × 1,5 | 0,672 |
| 20 × 20 × 1,0 | 0,625 |
| 20 × 20 × 1,2 | 0,743 |
| 20 × 20 × 1,5 | 0,918 |
| 20 × 20 × 2,0 | 1,199 |
| 25 × 25 × 1,0 | 0,792 |
| 25 × 25 × 1,2 | 0,945 |
| 25 × 25 × 1,5 | 1,164 |
| 25 × 25 × 2,0 | 1,525 |
| 30 × 30 × 1,0 | 0,950 |
| 30 × 30 × 1,2 | 1,130 |
| 30 × 30 × 1,5 | 1,406 |
| 30 × 30 × 2,0 | 1,850 |
| 30 × 30 × 3,0 | 2,700 |
| 35 × 35 × 1,5 | 1,652 |
| 35 × 35 × 2,0 | 2,178 |
| 40 × 40 × 1,5 | 1,903 |
| 40 × 40 × 2,0 | 2,511 |
| 40 × 40 × 3,0 | 3,665 |
| DIMENSIONS mm | WEIGHT kg/m |
|---|---|
| 45 × 45 × 1,5 | 2,130 |
| 45 × 45 × 2,0 | 2,815 |
| 50 × 50 × 1,5 | 2,380 |
| 50 × 50 × 2,0 | 3,150 |
| 50 × 50 × 3,0 | 4,650 |
| 60 × 60 × 1,5 | 2,870 |
| 60 × 60 × 2,0 | 3,800 |
| 60 × 60 × 3,0 | 5,620 |
| 70 × 70 × 2,0 | 4,500 |
| 70 × 70 × 3,0 | 6,680 |
| 80 × 80 × 2,0 | 5,104 |
| 80 × 80 × 3,0 | 7,580 |
| 80 × 80 × 4,0 | 9,807 |
| 100 × 100 × 2,0 | 6,508 |
| 100 × 100 × 3,0 | 9,686 |
| 100 × 100 × 4,0 | 12,359 |
| 120 × 120 × 2,0 | 7,556 |
| 120 × 120 × 3,0 | 11,259 |
| 120 × 120 × 4,0 | 14,911 |
| 150 × 150 × 3,0 | 14,128 |
| 150 × 150 × 4,0 | 18,738 |
